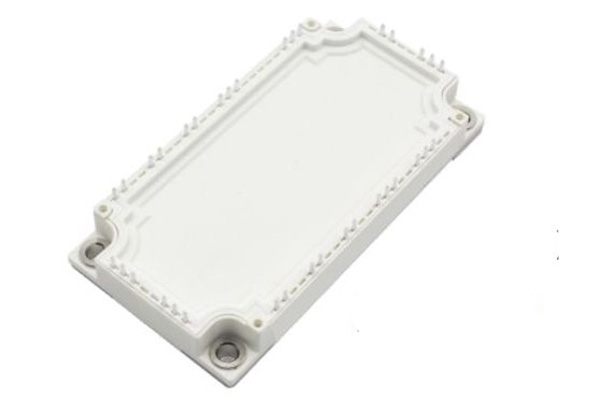

工业级功率模块
Q3系列

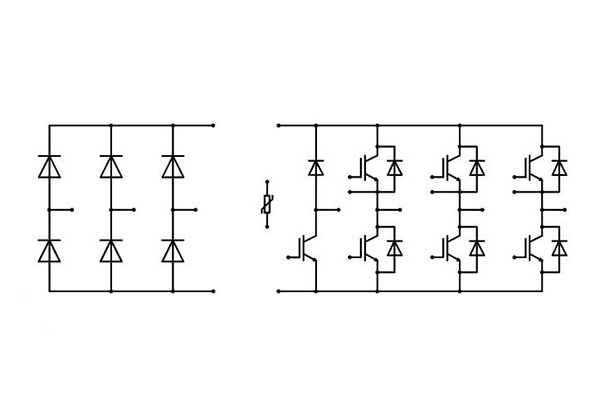

- 电路图：详见左侧
- 应用：
- 特性：低开关损耗，低电感模块，高短路耐量。
- 在线咨询
| Product | Product Status | Vces(V) | Vges(V) | Ic(A) | Configuration | Vce(sat) (V) | Vf((V) | Eon (mj) | Eoff(mj) |
| DMT075B12GQ3P1 | Available | 1200 | +20 | 75 | Six-pack | 1.70 | 1.80 | 3.0 | 2.0 |
| DMT100B12GQ3P1 | Available | 1200 | +20 | 100 | Six-pack | 1.70 | 1.80 | 5.1 | 5.2 |
| DMT150B12GQ3P1 | Available | 1200 | +20 | 150 | Six-pack | 1.70 | 1.80 | 6.7 | 8.5 |
| DMT200B12GQ3P1 | Available | 1200 | +20 | 200 | Six-pack | 1.70 | 1.80 | 8.4 | 11.7 |
| DMT100B12GQ3P1 | Available | 1200 | +20 | 100 | Six-pack | 2.00 | 2.00 | 6.8 | 5.9 |
| DMT150B12GQ3P1 | Available | 1200 | +20 | 150 | Six-pack | 2.00 | 2.00 | 7.5 | 7.0 |
| Product | Product Status | Vces(V) | Vges(V) | Ic(A) | Configuration | Vce(sat) (V) | Vf((V) | Eon (mj) | Eoff(mj) |
| DMK050B12GQ2P1 | Available | 1200 | +20 | 50 | PIM | 1.60 | 1.90 | 3.2 | 2.6 |
| DMK075B12GQ2P1 | Available | 1200 | +20 | 75 | PIM | 1.60 | 1.90 | 3.1 | 5.0 |
| DMK075B12GQ3P1 | Available | 1200 | +20 | 75 | PIM | 1.60 | 1.90 | 3.1 | 5.0 |
| DMK100B12GQ3P1 | Available | 1200 | +20 | 100 | PIM | 1.70 | 1.90 | 3.8 | 5.3 |
| DMK150B12GQ3P1 | Available | 1200 | +20 | 150 | PIM | 1.70 | 1.90 | 5.2 | 9.1 |
| DMK100B12GQ3P1 | Available | 1200 | +20 | 100 | PIM | 1.90 | 2.00 | 4.9 | 4.6 |
| DMK150B12GQ3P1 | Available | 1200 | +20 | 150 | PIM | 1.90 | 2.00 | 6.5 | 7.0 |
