汽车级功率模块
Y3系列

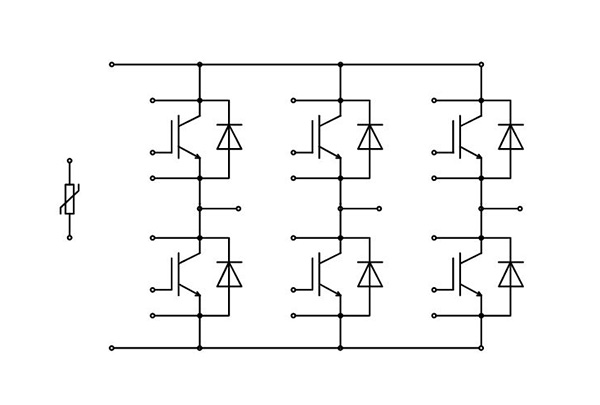

- 电路图：详见左侧
- 应用：
- 特性：低饱和压降，低开关损耗，功率端子超声波焊接
- 在线咨询
| Product | Product Status | Vces(V) | Vges(V) | Ic(A) | Configuration | Vce(sat) (V) | Vf((V) | Eon (mj) | Eoff(mj) |
| DMT300B07GY3P1 | Available | 650 | +20 | 300 | Six-pack | 1.55 | 1.60 | 1.9 | 24.7 |
| DMT400B07GY3P1 | Available | 650 | +20 | 400 | Six-pack | 1.55 | 1.60 | 2.4 | 29.3 |
| DMT550B07GY3P1 | Available | 650 | +20 | 550 | Six-pack | 1.55 | 1.60 | 2.8 | 32.5 |
| DMT300B08GY3P1 | Available | 750 | +20 | 300 | Six-pack | 1.40 | 1.75 | 1.9 | 25.8 |
| DMT400B08GY3P1 | Available | 750 | +20 | 400 | Six-pack | 1.40 | 1.75 | 2.6 | 29.7 |
| DMT550B08GY3P1 | Available | 750 | +20 | 550 | Six-pack | 1.40 | 1.75 | 3.2 | 36.7 |
| DMT200B12GY3P1 | Available | 1200 | +20 | 200 | Six-pack | 1.70 | 1.80 | 4.2 | 15.8 |
| DMT300B12GY3P1 | Available | 1200 | +20 | 300 | Six-pack | 1.70 | 1.80 | 5.8 | 23.5 |
| DMT660B07GY3P1 | Available | 650 | +20 | 660 | Six-pack | 1.55 | 1.60 | 3.3 | 36.4 |
| DMT660B08GY3P1 | Available | 750 | +20 | 660 | Six-pack | 1.40 | 1.75 | 3.8 | 39.8 |
PREVIOUS：V3系列
NEXT：None
