Industrial Power Module
J2
- Circuit diagram: see the left side for details
- Scope of application/li>
- Characteristic：Power terminal ultrasonic welding, low switching loss, high speed NPT structure.
- INQUIRY
| Product | Product Status | Vces(V) | Vges(V) | Ic(A) | Configuration | Vce(sat) (V) | Vf((V) | Eon (mj) | Eoff(mj) |

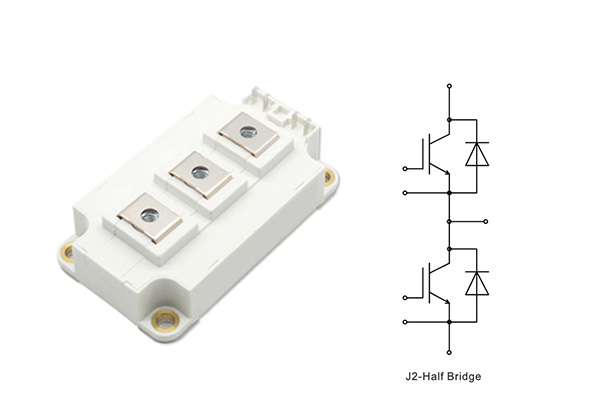

| Z62-HF | |||||||||
| DMH300B07GJ2P1 | Available | 650 | +20 | 300 | Half Bridge | 1.70 | 1.90 | 5.3 | 12.9 |
| DMH450B07GJ2P1 | Available | 650 | +20 | 450 | Half Bridge | 1.70 | 1.90 | 6.9 | 16.6 |
| DMH100B12GJ2P1 | Available | 1200 | +20 | 100 | Half Bridge | 3.10 | 1.90 | 11.2 | 2.6 |
| DMH150B12GJ2P1 | Available | 1200 | +20 | 150 | Half Bridge | 3.10 | 1.90 | 15.4 | 3.8 |
| DMH200B12GJ2P1 | Available | 1200 | +20 | 200 | Half Bridge | 3.10 | 1.90 | 20.4 | 5.6 |
| DMH300B12GJ2P1 | Available | 1200 | +20 | 300 | Half Bridge | 3.10 | 1.90 | 33.4 | 8.9 |
| DMH150B12GJ2P1 | Available | 1200 | +20 | 150 | Half Bridge | 1.70 | 1.80 | 3.1 | 10.1 |
| DMH200B12GJ2P1 | Available | 1200 | +20 | 200 | Half Bridge | 1.70 | 1.80 | 3.9 | 14.5 |
| DMH300B12GJ2P1 | Available | 1200 | +20 | 300 | Half Bridge | 1.70 | 1.80 | 5.4 | 22.3 |
| DMH400B12GJ2P1 | Available | 1200 | +20 | 400 | Half Bridge | 1.70 | 1.80 | 6.6 | 34.8 |
| DMH450B12GJ2P1 | Available | 1200 | +20 | 450 | Half Bridge | 1.70 | 1.80 | 11.3 | 45.7 |
| DMH150B12GJ2P1 | Available | 1200 | +20 | 150 | Half Bridge | 2.00 | 1.90 | 3.5 | 12.6 |
| DMH200B12GJ2P1 | Available | 1200 | +20 | 200 | Half Bridge | 2.00 | 1.90 | 4.2 | 19.8 |
| DMH300B12GJ2P1 | Available | 1200 | +20 | 300 | Half Bridge | 2.00 | 1.90 | 5.8 | 25.4 |
| DMH400B12GJ2P1 | Available | 1200 | +20 | 400 | Half Bridge | 2.00 | 1.90 | 7.1 | 38.2 |
| DMH450B12GJ2P1 | Available | 1200 | +20 | 450 | Half Bridge | 2.00 | 1.90 | 8.2 | 48.3 |
| Product | Product Status | Vces(V) | Vges(V) | Ic(A) | Configuration | Vce(sat) (V) | Vf((V) | Eon (mj) | Eoff(mj) |

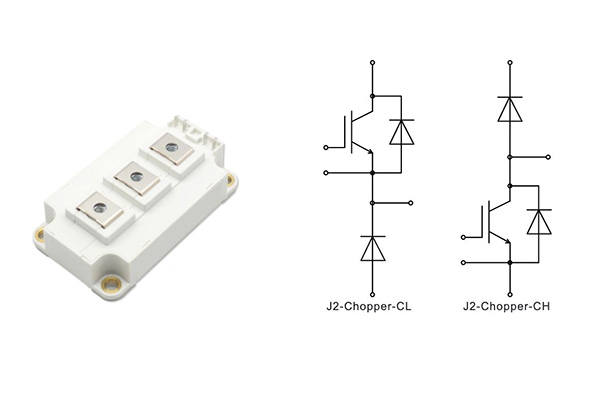

| Z62-CL | |||||||||
| DMC150B12GJ2P1 | Available | 650 | +20 | 150 | Chopper Low | 1.70 | 1.80 | 3.1 | 10.1 |
| DMC200B12GJ2P1 | Available | 650 | +20 | 200 | Chopper Low | 1.70 | 1.80 | 3.9 | 14.5 |
| DMC300B12GJ2P1 | Available | 1200 | +20 | 300 | Chopper Low | 1.70 | 1.80 | 5.4 | 22.3 |
| DMC400B12GJ2P1 | Available | 1200 | +20 | 400 | Chopper Low | 1.70 | 1.80 | 6.5 | 34.8 |
| DMC450B12GJ2P1 | Available | 1200 | +20 | 450 | Chopper Low | 1.70 | 1.80 | 11.3 | 45.7 |
| Z62-CH | |||||||||
| DMD150B12GJ2P1 | Available | 1200 | +20 | 150 | Chopper Low | 1.70 | 1.80 | 3.1 | 10.1 |
| DMD200B12GJ2P1 | Available | 1200 | +20 | 200 | Chopper Low | 1.70 | 1.80 | 3.9 | 14.5 |
| DMD300B12GJ2P1 | Available | 1200 | +20 | 300 | Chopper Low | 1.70 | 1.80 | 5.4 | 22.3 |
| DMD400B12GJ2P1 | Available | 1200 | +20 | 400 | Chopper Low | 1.70 | 1.80 | 6.6 | 34.8 |
| DMD450B12GJ2P1 | Available | 1200 | +20 | 450 | Chopper Low | 1.70 | 1.80 | 11.3 | 45.7 |
| Product | Product Status | Vces(V) | Vges(V) | Ic(A) | Configuration | Vce(sat) (V) | Vf((V) | Eon (mj) | Eoff(mj) |

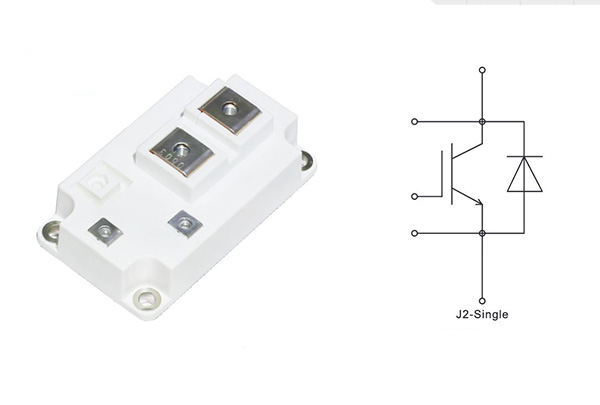

| Z62-Single | |||||||||
| DMS600B12GJ2P1 | Available | 1200 | +20 | 600 | Single | 1.70 | 1.90 | 30.2 | 78.4 |
| DMS800B12GJ2P1 | Available | 1200 | +20 | 800 | Single | 1.70 | 1.80 | 53 | 110 |
